FACE-CENTRED CUBIC (FCC) STRUCTURE

In this type of crystal structure, the unit cell has one atom at each corner of the cube and one atom at the centre of each face. (fig. 1.20).

This structure is close-packed because each atom has 12 nearest neighbours. This type of structure is more common in metals.

1. Number of atoms per unit cell

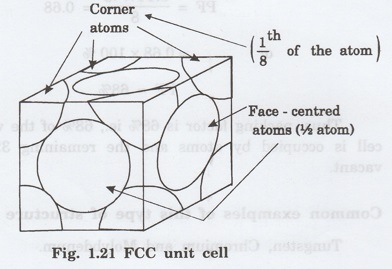

A unit cell of a face - centred cubic structure is shown in fig. 1.21. There are 8 corner atoms, one at each of its 8 corners. Each corner atom is shared by 8 surrounding unit cells.

Share of each unit cell = 1/8 of corner atoms.

Number of atoms per unit cell from

the contribution of corner atoms = (1/8) X 8 = 1 atom

In addition, there are 6 atoms at the 6 face centres of the cube. Each face-centred atom is shared by 2 adjacent unit cells.

Hence, the share of each unit cell = 1/2 of face- centred atoms

Number of atoms in the unit cell from the contribution of face-centred atom = (1/2) x 6 = 3 amots

Total number of atoms per unit cell = 1 + 3 = 4 atoms

2. Coordination number

In FCC structure, there are 8 corner atoms and 6 face centred atoms one at the centre of each face of the unit cell.

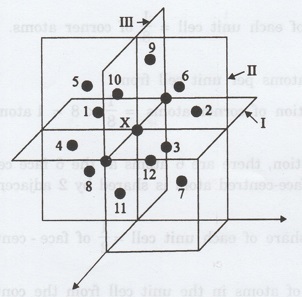

Consider a corner atom (X) of a unit cell as shown in fig. corner atom (X) 1.22. There are three mutually perpendicular planes with a common point of intersection on the atom X.

In plane I, it has 4 face centred atoms (1, 2, 3, 4) as nearest neighbours.

In plane II, it has 4 more face centred atoms (5, 6, 7, 8) as nearest neighbours for the corner atom X.

Fig. 1.22 Calculation of coordination number

Similarly, plane III has 4 more face centred atoms, (9, 10, 11, 12) as nearest neighbours to the corner atom X.

Therefore, total number of nearest atoms to any corner atom is 4+4 +4 = 12

Hence, coordination number is 12.

Note: The coordination number can also be found by taking face centred atom as the reference atom, nearest neighbouring atoms are corner atoms. It is found to be the 12.

3. Atomic radius

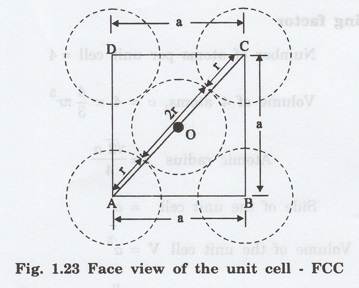

Consider the atoms at A and C in a face of unit cell of FCC. These atoms lie in a straight line along the face diagonal AC.

The atoms touch each other along the face diagonal of the cube. The length of the face diagonal

AC = r + 2r + r = 4r (Fig. 1.23).

In right angled ∆ ABC

AC² = AB²+ BC²

Substituting for AC², AB² and BC² from fig 1.23, we have

(r+2r+r)² = a² + a²

(4r)² = 2a²

4² r² = 2a²

r² = 2a²/4

Taking square root on both sides, we have

4. Packing factor

Number of atoms per unit cell = 4

Volume of 4 atoms, v = 4 × (4/3) πr3

Atomic radius r = √2 a / 4

Side of the unit cell = a

Volume of the unit cell V = a³

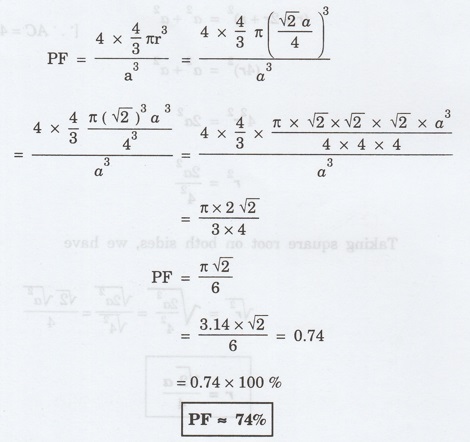

Packing factor = v / V

Substituting for v, V and r, we have

Thus, the packing factor is 74% ie., 74% of the volume of unit cell is occupied by atoms and the remaining 26% volume is vacant.

Common examples of this type of structure

Copper, aluminuim, nickel, gold, lead and platinum.

Note: Packing factor of FCC =√2 × Packing factor of SC

Some special cubic crystal structures

In addition to SC, BCC, FCC and HCP, there are some special cubic structures. Some of these structures are derivatives from or combination of the basic structures described above.
