SINGLE ELECTRON PHENOMENA

In electronics, transistor is the most important device. Transistors are what computers use to compute-tiny switches turning ON and OFF making logic decisions.

Today, microchips have over a billion transistors, each one turning ON and OFF a billion times every second.

These chips require manufacturing processes with roughly sub 100-nanometer resolution. Every year, this technology resolution drops enabling even smaller transistors. Thus, more transistors are squeezed into the same amount of semiconductor space.

Interestingly, when each transistor is reducing to a few atoms, or a single molecule, quantum effects will play a significant role.

In 1970, to switch ON a silicon transistor required about 10 million electrons. Present day, transistors require closer to 10,000 electrons. Rather than moving many electrons through transistors, it may very well be practical and necessary to move electrons one at a time.

The single electron devices are sensitive to the transfer of even single electron change. Single electron devices provide a potential application of ultra large scale integrated circuits with device size in the order of nanometres. They exhibit high speed operation with lower power dissipation.

Coulomb - Blockade effects

As the size of the quantum dot decreases, the charging energy W_c of a single excess charge on the dot increases.

If the quantum-dot size is sufficiently small and the charging energy W_c is much greater than thermal energy k T, there is no electron tunnels to and from the quantum dot.

Thus, the electron number in the dot takes a fixed value, say zero, when both the electrodes are grounded.

Definition

The charging effect which blocks the injection or rejection of a single charge into or from a quantum dot is called Coulomb blockade effect.

Condition for coulomb blockade

If two or more charges near one another, they exert coulomb forces upon each other. If two charges are the same kind, the force is repulsive. Therefore, the condition for observing coulomb blockade effect is expressed as

where C - capacitance of the quantum dot

T - temperature of the system.

W_c - charging energy and this is the energy needed to add one negatively charged electron to the dot.

Single Electron Tunneling

Tunneling is the way the electrons cross both the physical barriers and the energy barriers separating a quantum dot from the bulk material that surrounds it.

If any number of electrons on one side of the barrier could just tunnel across it, there would not be any isolation.

So it is necessary to control the addition and removal of electrons in a quantum dot.

When the size gets reduced, the capacitance also reduces to a small value.

At small sizes, the energy required to store an additional electron on it,  may become larger than the thermal energy kT.

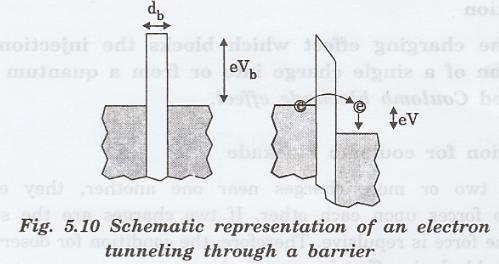

As a consequence, the quantization of charge can dominate and tunneling of single electrons across leaky capacitors carries the current. This is called single electron tunneling (Fig. 5.10).

It is used to design new types of devices, for example single-electron transistor using quantum dots.

So single-electron devices are devices that can control the motion of even a single electron and consist of quantum dots which have tunnel junctions.
